U-Ditch Standar Small | PT Beton Elemenindo Perkasa

Product Spesification :

Length	120 cm
Steel Grade	U-50
Concrete Quality	K-350
Production Method	Wet Cast

U-Ditch Standard Small – Dry Cast

No	Size Type (Width x Height)	Dimensions (mm)					Weight / pcs (Kg)
		a	b	c	d	e
1	300 x 300	295	300	65	63	426	199
2	300 x 400	300	400	65	60	426	235
3	400 x 400	403	400	65	57	530	254
4	400 x 500	406	500	65	53	530	285
5	400 x 600	410	600	65	50	530	314
6	500 x 500	490	500	75	76	648	389
7	500 x 600	495	600	75	73	648	428
8	500 x 700	500	700	75	70	648	470

U-Ditch Standard Small – Wet Cast

No	Size Type (Width x Height)	Dimensions (mm)					Weight / pcs (Kg)
		a	b	c	d	e
1	300 x 300	295	300	65	53	400	175
2	300 x 400	300	400	65	50	400	204
3	300 x 500	305	500	65	48	400	233
4	400 x 300	399	300	65	56	510	206
5	400 x 400	403	400	65	54	510	240
6	400 x 500	406	500	65	52	510	269
7	400 x 600	410	600	65	50	510	298
8	500 x 300	480	300	75	70	620	269
9	500 x 400	485	400	75	68	620	307
10	500 x 500	490	500	75	65	620	346
11	500 x 600	495	600	75	63	620	384
12	500 x 700	500	700	75	60	620	418
13	600 x 600	614	600	75	72	758	434
14	600 x 700	616	700	75	71	758	475
15	600 x 800	618	800	75	70	758	516
16	800 x 800	819	800	85	82	983	648
17	800 x 900	821	900	85	81	983	694
18	800 x 1000	823	1000	85	80	983	739

U-Ditch Cover Standard Small – Light Duty (LD) Cover

No	Cover Type	Dimensions (mm)			Weight / pcs (Kg)	Weight / pcs TC*
		t	L	m
1	CUD 300 LD	70	600	200	41	40
2	CUD 400 LD	80	600	200	58	57
3	CUD 500 LD	90	600	200	79	78
4	CUD 600 LD	100	600	200	103	102
5	CUD 800 LD	100	983	200	137	136

U-Ditch Cover Standard Small – Heavy Duty (HD) Cover

No	Cover Type	Dimensions (mm)			Weight / pcs (Kg)	Weight / pcs TC*
		t	L	n
1	CUD 300 HD	100	600	200	60	59
2	CUD 400 HD	120	600	200	89	87
3	CUD 500 HD	130	600	200	118	116
4	CUD 600 HD	140	600	200	146	144
5	CUD 800 HD	150	600	200	206	204

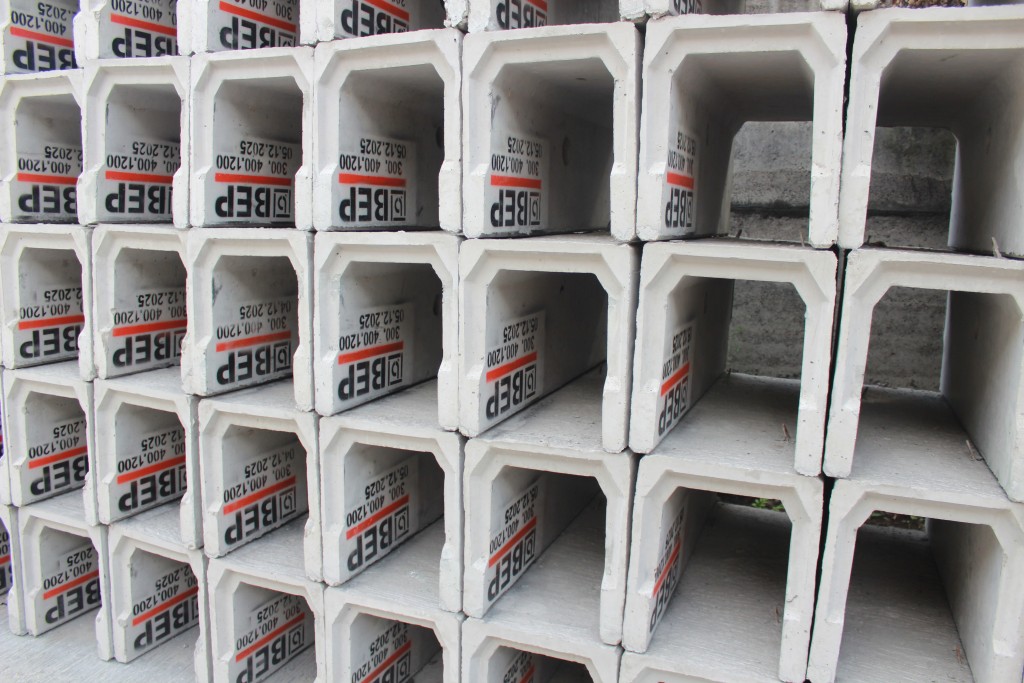

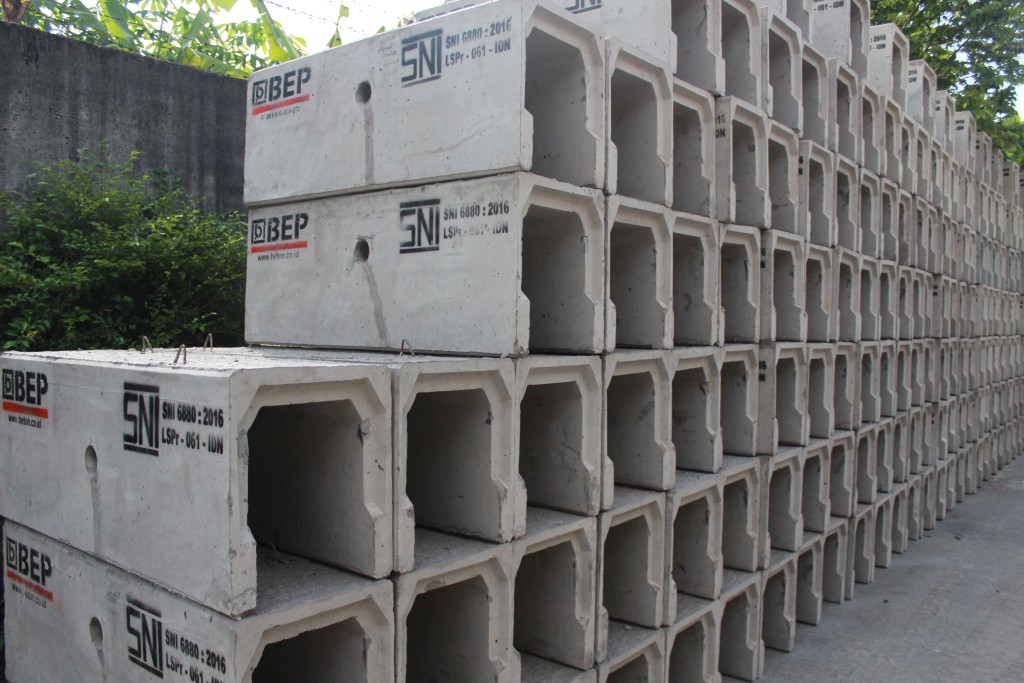

Produk Gallery
